3 Row Star - 24" Wide (11cm) / 90 RGB Nodes Total (Star Only / Nodes Not Included)

Home > RGB Props / Coro Items > Stars for Megatrees >

Photos may show optional items
Actual product may differ due to design improvements

Additional Photos:

Our Price: $19.99

Availability / Ships: Same Day / Intermittently up to 3 days / Delivery Times
Product Code: 123-24

Qty:

The following items are included with this product:

[Product Description Page]

Bob's 3 Row Pixel Node Star

Setup 24" Star in xLights

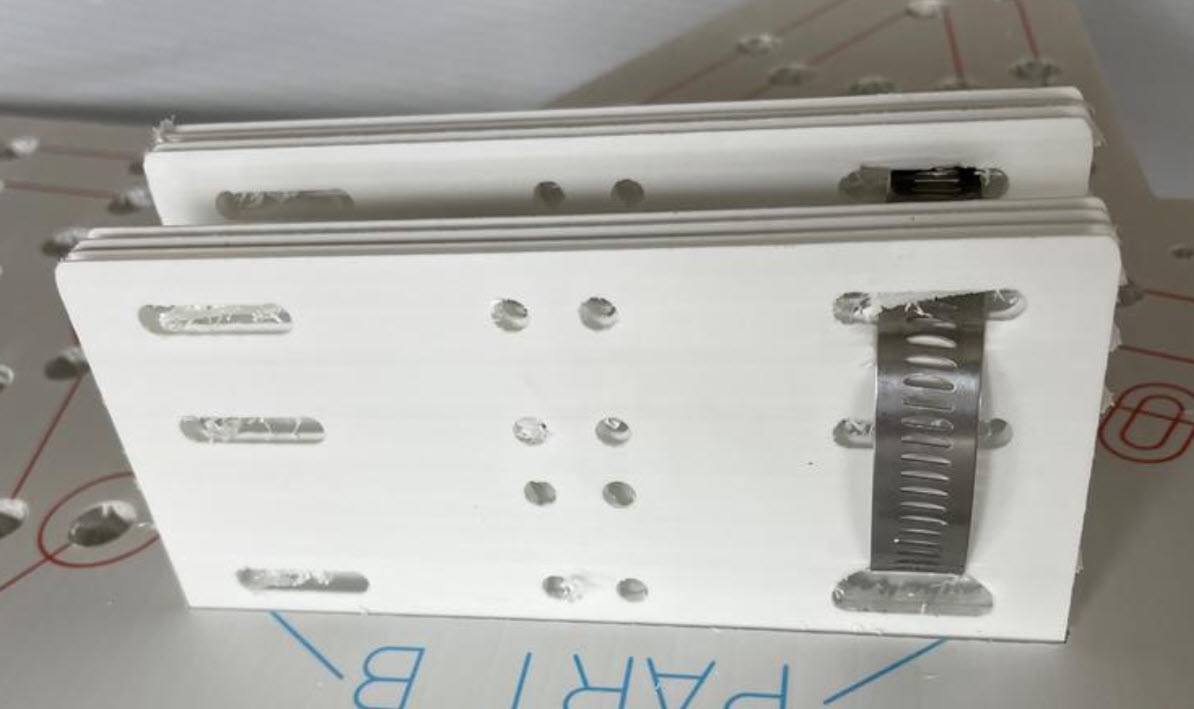

How to Construct the Mounting for the MegaTree Star

Product Features

Description
- For use with "smaller" megatrees
- Misc projects
Dimensions:
- Edge to Edge: 24.3 Inches / 61.7 cm
- Top to Bottom: 23.2 Inches / 58.9 cm
This package includes:

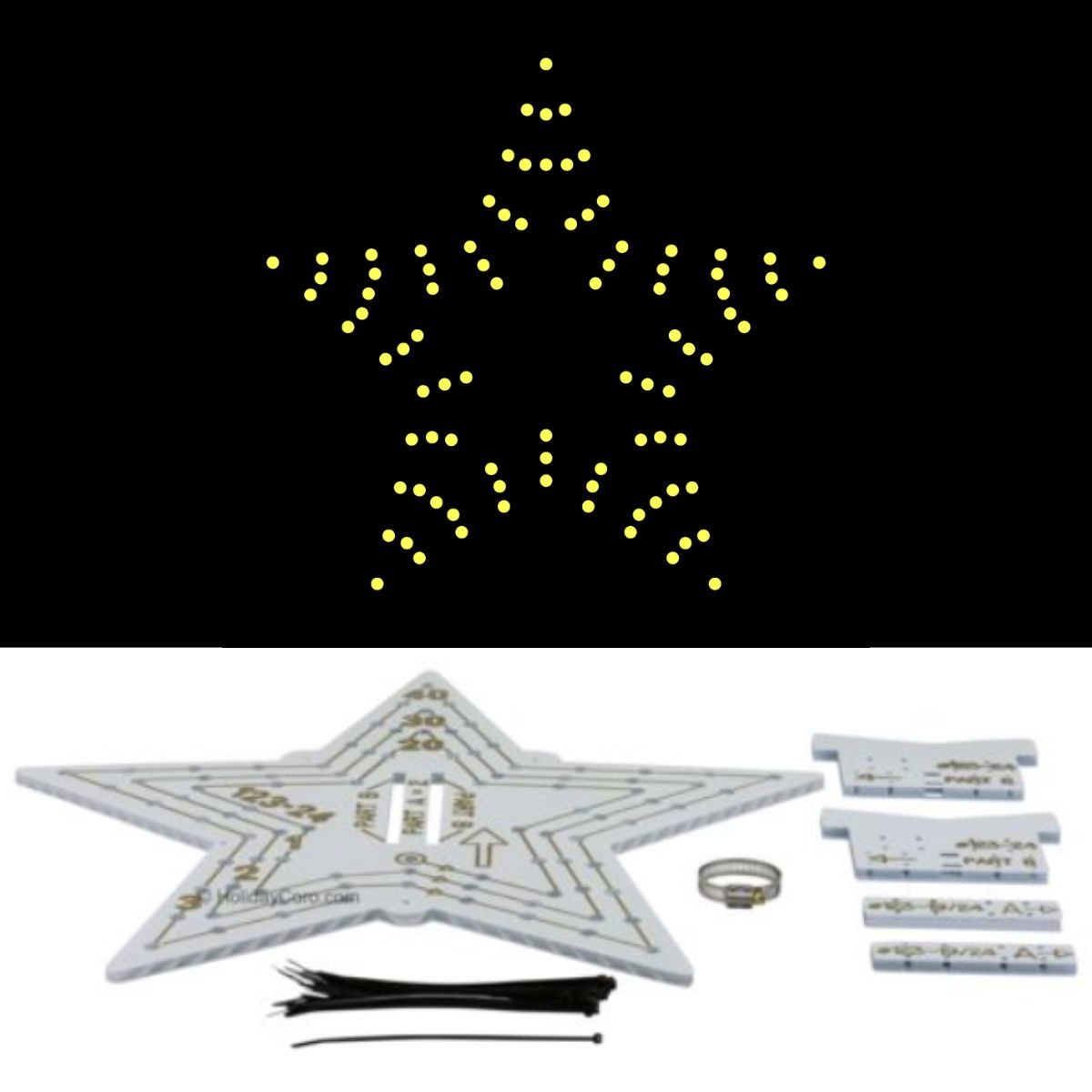

- White 10mm Coro Star with pre-cut holes for 90 RGB nodes
  - Counts per Ring:
    - Ring 3 (outer most ring): 40 Nodes
    - Ring 2: 30 Nodes
    - Ring 1 (inner most ring): 20 Nodes
Node layout orders
- Smart Pixel Nodes
  - 90 of 12v smart pixel nodes (Bullet style nodes recommended)
  - Wiring order:
    - See diagram on this page for layout order
    - Nodes are installed on back side with gold instructional writing
    - Nodes are installed going counter/anti-clock wise (clock-wise when viewed from the front)
    - Controller output #1: Ring 1 (20 nodes - inner most ring) + 2 (30 nodes) + 3 (40 nodes) = 90 nodes
      - DMX Channels 1 to 270
    - See diagram at bottom of page for layout
- Dumb Nodes
  - 90 of 12v RGB dumb nodes
  - Wiring order:
    - See diagram on this page for layout order
    - Nodes are installed on back side with gold instructional writing
    - Controller output #1: Ring 1 (20 nodes - inner most ring)
      - DMX channels 1 to 3
    - Controller output #2 Ring 2 (30 nodes)
      - DMX Channels 4 to 6
    - Controller output #3 Ring 3 (40 nodes)
      - DMX Channels 7 to 9
    - See diagram at bottom of page for layout
Additional Information
- No lights or wiring included with this product SKU.

Smart Wiring Diagram:

Dumb Wiring Diagram:
