2 Row Star - 19" Wide (48cm) / 50 RGB Nodes (Star Only / Nodes Not Included)

Home > By Location / Season > By Season - Christmas > Stars >

Photos may show optional items
Actual product may differ due to design improvements

Additional Photos:

Our Price: $15.99

Availability / Ships: Same Day / Intermittently up to 3 days / Delivery Times
Product Code: 123-19

Qty:

The following items are included with this product:

[Product Description Page]

Setup 19" Star in xLights

Product Features

Description
- Misc projects
Dimensions:
- Edge to Edge: 19.3 Inches / 49.0 cm
- Top to Bottom: 18.4 Inches / 46.7 cm
This package includes:

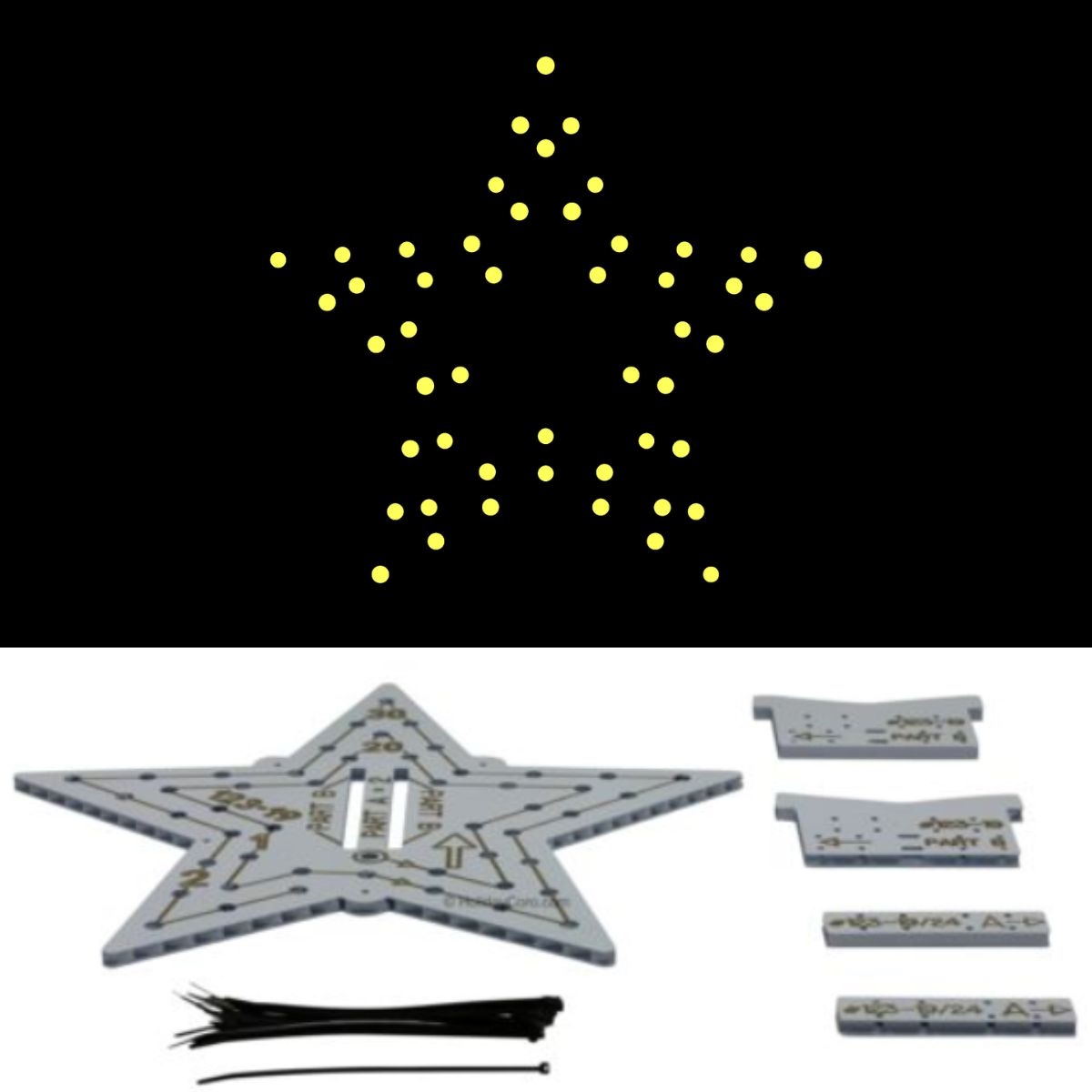

- White 10mm Coro Star with pre-cut holes for 50 RGB nodes
  - Counts per Ring:
    - Ring 2: 30 Nodes
    - Ring 1 (inner most ring): 20 Nodes
Node layout orders
- Smart Pixel Nodes
  - 50 of 12v smart pixel nodes (Bullet style nodes recommended)
  - Wiring order:
    - See diagram on this page for layout order
    - Nodes are installed on back side with gold instructional writing
    - Nodes are installed going counter/anti-clock wise (clock-wise when viewed from the front)
    - Controller output #1: Ring 1 (20 nodes - inner most ring) + 2 (30 nodes) = 50 nodes
      - Universe 20
      - DMX Channels 1 to 150
    - See diagram at bottom of page for layout
- Dumb Nodes
  - 50 of 12v RGB dumb nodes
  - Wiring order:
    - See diagram on this page for layout order
    - Nodes are installed on back side with gold instructional writing
    - Controller output #1: Ring 1 (20 nodes - inner most ring)
      - DMX channels 1 to 3
    - Controller output #2 Ring 2 (30 nodes)
      - DMX Channels 4 to 6
    - See diagram at bottom of page for layout
Additional Information
- No lights or wiring included with this product SKU.

Smart Wiring Diagram:

Dumb Wiring Diagram:
