PixNode QuickArch Kit Leaping Arches / 1 to 3 Rings / Small - 76.4 in - 194 cm Wide / Large - 144in - 366 cm Wide

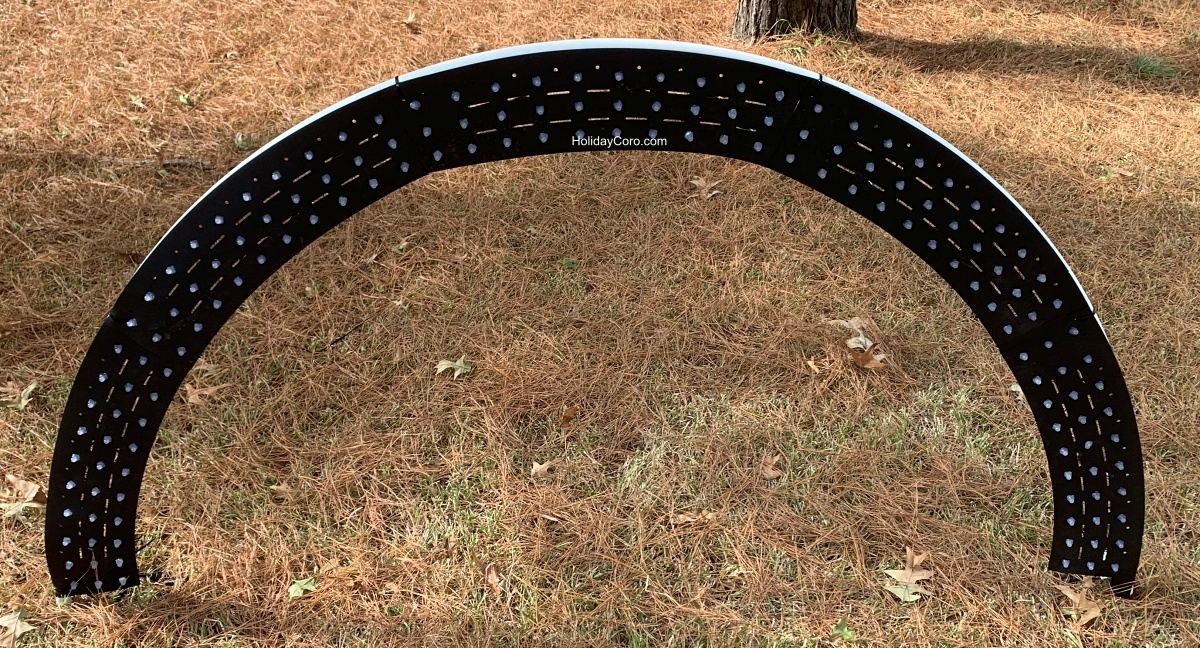

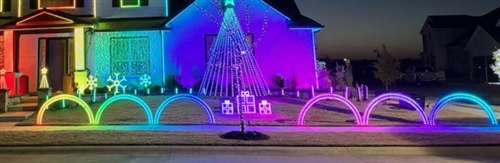

PRODUCT PHOTO: PixNode QuickArch Kit / 1 to 3 Rings

Photos may show optional items including lights. Assembly required. Available in black and white.

Additional Photos:

Availability / Ships: Usually Ships in 24 Hours
Product Code: 1083

Select Material Color

SMALL - Black - 76.4 in - 18.8cm Wide / 38.2 in - 97 cm Tall / Up to 150 Pixel Nodes / BLACK [Add $10.99]
SMALL - White - 76.4 in - 18.8cm Wide / 38.2 in - 97 cm Tall / Up to 150 Pixel Nodes / WHITE [Add $10.99]
LARGE - Black - 144 in - 366cm Wide / 72 in - 183cm Tall / Up to 405 Pixel Nodes / BLACK [Add $24.99]
LARGE - White - 144 in - 366cm Wide / 72 in - 183cm Tall / Up to 405 Pixel Nodes / WHITE [Add $24.99]

Select Zip Ties

SM - QTY 20 of Black 8 Inch Zip Ties (For use with black Arch material, sufficient for 1 Arch) [Add $0.99]
SM - QTY 20 of White 8 Inch Zip Ties (For use with white Arch material, sufficient for 1 Arch) [Add $0.99]
LG - QTY 40 of Black 8 inch Zip Ties (For use with large Black Arch material sufficient for 1 Arch) [Add $1.98]
LG - QTY 40 of White 8 inch Zip Ties (For use with large white Arch material sufficient for 1 Arch) [Add $1.98]
None - I'll supply my own zip ties

Qty:

[Product Description Page]

How to Assemble

Easy Assembly and Dis-Assembly

Setup Model in xLights

Single Row / 50 Pixels

Product Features

General Product Information

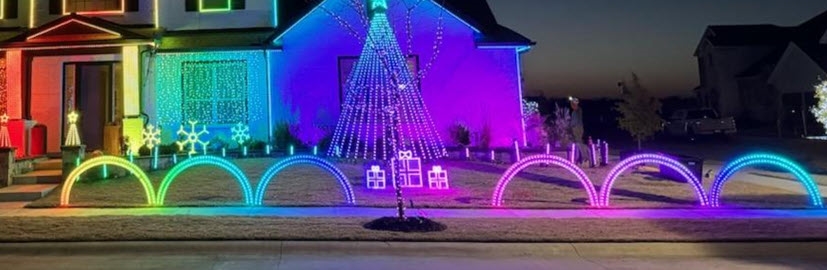

- Intended locations for use:
  - Ground Locations
  - Along driveways
  - Along Sidewalks
  - To create pedestrian barriers to parks, yards and other areas
- Holiday Seasons:
  - All - including year round
- Quick installation with just a few zip ties and nodes
- Super easy installation and storage - just pull off rebar mounting and store flat
- Very economical - with minimal hardware requirements
- Tolerant of imperfect constructed arches - no worries about exactly precise arch construction as the QuickArch system will allow adjustments to height and width
- Adjustable pixel counts
  - Small
    - Top Row - 50 Pixel Nodes @ 2.25 inches / 57mm
    - Middle Row - 50 Pixel Nodes @ 2.1 inches / 53mm
    - Bottom Row - 50 Pixel Nodes @ 2.0 inches / 51mm
  - Large
    - Top Row - Pixel Nodes 135 @ 1.56 inches / 39.6 mm
    - Middle Row - Pixel Nodes 135 @ 1.53 inches / 38.8 mm
    - Bottom Row - Pixel Nodes 135 @ 1.5 inches / 38.1 mm
- Use regular scissors to cut to preferred number of rows - 1, 2 or 3 rows
- Produced from weather resistant and strong plastic
- Available in black or white
Included, optional and customer supplied items
- Required items:
  - Zip Ties – 8 inch / 200mm recommended. Hole size for zip tie is .2 inch. See optional zip ties on this page.
  - Pixel nodes with 3" Spacing (nominal) in 50, 100 or 150 counts
    - Recommend pixel: http://www.holidaycoro.com/12mm-Pixel-Node-With-Waterproof-Connections-p/711-wp.htm
    - We do not recommend "square" or "flat" node types
- Customer supplies items (per arch):
  - For Small Arch:
  - For Large Arch:
    - One 20ft Length of 3/4" PVC Pipe (plumbing or electrical section of your hardware store)
      - Grey (UV resistant)
      - White (Partially UV resistant)
  - For both Large and Small Arches:
    - Two of 2ft or 4ft Lengths of 1/2" Rebar (concrete section, usually available pre-cut)
    - Assumes soft ground, other hard surfaces may require other mounting method
- Customer supplied tools:
  - Hammer for rebar installation
  - Nippers / Cutters for zip ties
  - Scissors (If modifying from 150 Pixel Count / 3 Row to 100 Pixel Count / 2 Row or 1 Row 50 Pixel Count)
Assembly Instructions and Recommended Reading/Watching
- Instructions
  - Video:See this product page
  - Written: None
Estimated assembly time: 5 to 20 minutes
Technical Specifications
- Color: Black or White
- Material thickness: .038 inches
- Overall dimensions: Small 76.4 in x 38.2 in / Large 144 om x 72 in (fully assembled)
- Temperature Range: -17f to +160f
- Material Composition: HDPE
- County of Origin
  - Materials/parts: USA (Texas)
  - Assembly/Mfg: USA (Texas)
  - Design: USA (Texas)
History
- Released 18-Aug-2019
