Smart / Pixel RGB LED 12mm Gumdrop / 12v / 2811 / 100 Node String / 4" Spacing / Black / Waterproof xConnect Input and Output Cables

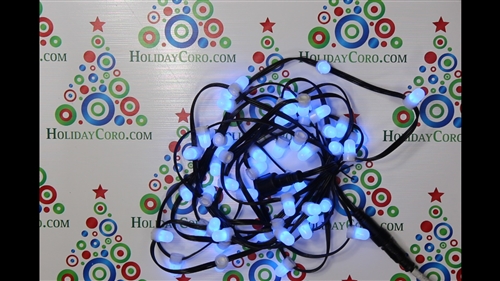

PRODUCT PHOTO: Smart / Pixel RGB LED 12mm Gumdrop / 12v / 2811 / 100 Node String / 4" Spacing / Black / Waterproof xConnect Input and Output Cables

Additional Photos:
Our Price: $34.99



Availability / Ships: Usually Ships in 24 Hours
Product Code: 596

EasyPlug3 Female Pigtail for RGB Pixels

None - I am using HolidayCoro Extensions and/or Controllers
1 of Female xConnect / Start Pigtail Cable / 18 AWG [Add $1.39]
    - Not required when used with HolidayCoro extensions and controller systems
1 of Female xConnect / Start Pigtail Cable / 20 AWG [Add $1.12]
    - Not required when used with HolidayCoro extensions and controller systems
EasyPlug3 Male Pigtail for RGB Pixels

None - I am using HolidayCoro Extensions and/or Controllers
1 of Male xConnect Pigtail Cable / 18 AWG [Add $1.39]
    - Not required when used with HolidayCoro extensions and controller systems
1 of Male xConnect Output / End Pigtail Cable / 20 AWG [Add $1.12]
    - Not required when used with HolidayCoro extensions and controller systems
To Plug Unused Female Ends & Pigtails

No Plugs for Unused Female Pigtails
1 of Male xConnect Plugs for Female Plugs [Add $0.39]

Qty:
[Product Description Page]

.
Hands on with the product
Product Features

  • Features
    • Smart / Pixel Nodes
    • Pixel protocol WS2811 / 1903
    • Viewing angle of 120 degrees
    • Waterproof input and output connections for easy, no solder connections
    • Black wire
  • Lights
    • Total LEDs per node: 3 (Red, Green, Blue)
    • Total LED nodes per string: 100
    • Total DMX channels required per string: 150 DMX Channels
  • Dimensions
    • Gumdrop to gumdrop (center) distance: ~4 inches
    • Lead in and lead out wire length: 4 inches (both ends) with EasyPlug 3 / xConnect waterproof plug
    • Maximum diameter of node: 12mm / .47"
  • Weather
    • Silicone body/base
    • Epoxy sealed body/casing to ensure waterproof wiring and electronics
    • IP68
