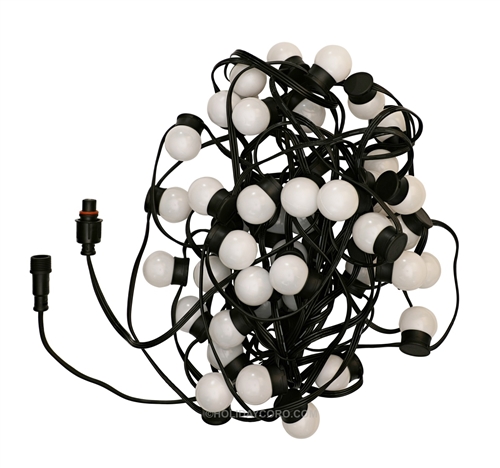

Brilliant Bulb™ - RGB Pixel Globe
Brilliant Bulbâ„¢ - RGB Pixel Globe
Sold as 50 Count Strings



Price: Varies by Spacing


Availability / Ships: Usually Ships in 24 Hours
Product Code: 809

Brilliant Bulb Spacing

String of 50 12v Brilliant Bulb 30mm Globes / 8" Center to Center Spacing [Add $43.99]

EasyPlug3 Female Pigtail for RGB Pixels

None - I am using HolidayCoro Extensions and/or Controllers
1 of Female EasyPlug3 Input / Start Pigtail Cable [Add $0.79]
    - Not required when used with HolidayCoro extensions and controller systems
EasyPlug3 Male Pigtail for RGB Pixels

None - I am using HolidayCoro Extensions and/or Controllers
1 of Male EasyPlug3 Output / End Pigtail Cable [Add $0.79]
    - Not required when used with HolidayCoro extensions and controller systems

Qty:
[Product Description Page] [FAQ & Documentation Page]

.
Hands on Demo
Product Features
  • Features
    • Please note that these require a smart pixel controller - these will not work with dumb controllers!
    • Smart / Pixel Bulb
    • Pixel protocol/chip: 2811 / 1903
    • Viewing angle of 360 degrees (horizontal plane) / 270 degrees (vertical plane)
    • High Brightness LEDs
    • Black wire / Black bulb base to ensure optimal hiding
    • NOTE: This product is not compatible with the PixelTrim system.
  • Specifications
    • Voltage: 12 Volts
    • Total 5050 RGB LEDs per bulb: 2 (6 individual LEDs with Red, Green, Blue)
    • Total bulbs per string: 50
      • NOTE: Length can be shortened or extended as needed
    • Total DMX channels required per string: 150 DMX Channels
    • Bulb Dimensions:
      • Bulb diffuser: 1.18" / 30mm
      • Bulb base diameter: ~7/8"
    • Connections
    • Wire
      • 17/0.16 TS - Note that most vendors refer to this wire as "18 AWG"
      • EasyPlug3 pigtails on input and output
      • Black in color
      • "Flat" (as opposed to round)
  • String Dimensions
    • 8 Inch Spacing
      • Center to center spacing of bulbs: 8 Inches (205mm)
      • Overall Length from bulb 1 to bulb 50: 32 Feet, 8 Inches (9.9 meters)
      • Lead in and lead out wire (bare, tinned): 12 inches (305mm)
  • Weather
    • Epoxy sealed body/casing to ensure waterproof wiring and electronics
    • IP68 / 100% Water Proof
  • Power
    • 12v DC Input
    • White (all three colors) per bulb: 40 miliamps / .48 Watts
    • White (all three colors) per string of 50 bulbs: @ 2 amps / ~24 Watts @ 12v DC (this amount can vary by temperature, wiring to the string and supply voltage)
    • It is possible to run up to 100 bulbs, in a single string, without power injection other than at the start of the string and have good white color output.
